F4 - Models from 1995 to 1999.

To see the spare parts views, click on links on photographies where the hand appears.

Pour obtenir les vues éclatées, cliquez sur l'image quand la main apparait.

10036 50254 51025 51026 51064 51068 52600/1-Control panel indications 52600 52610 10037-Tool

10155 31095 31099 50255 51090 51090-Side view 51120 51121 52615 Plug for hood

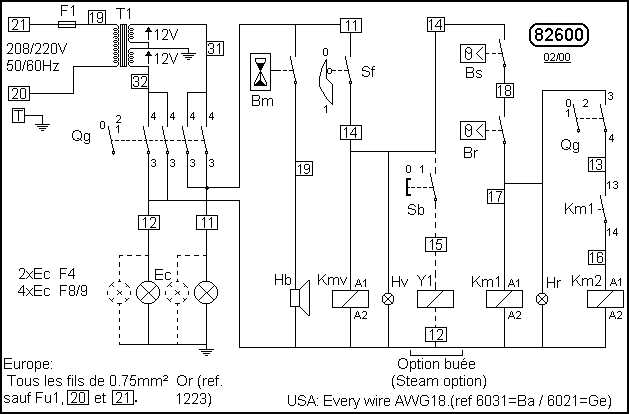

82600 - Low voltage control circuit.

Model Main terminals secondary terminals Power Heating elements

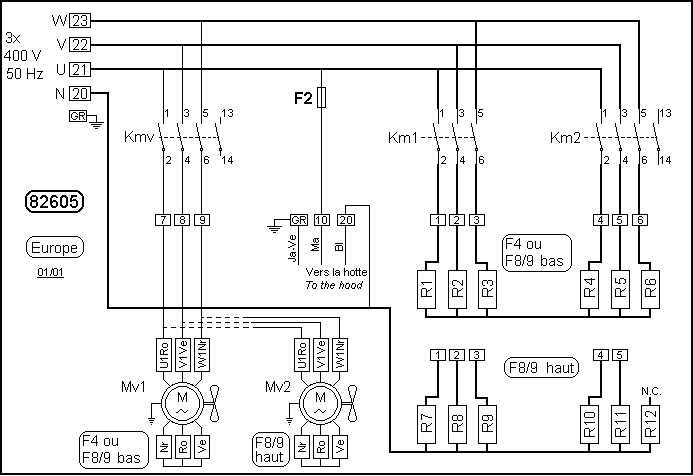

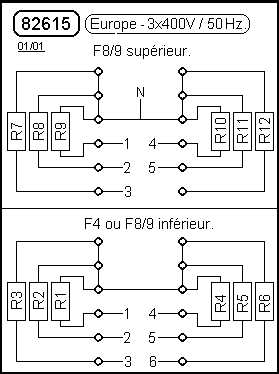

Europe - 3x400V 50Hz 82604 82601 82605 82615

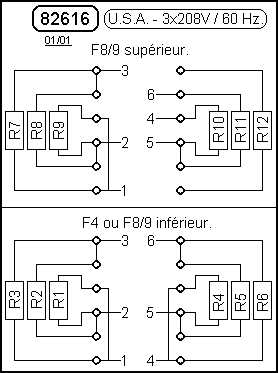

USA - 3x208V 60Hz 82603 82602 82606 82616
